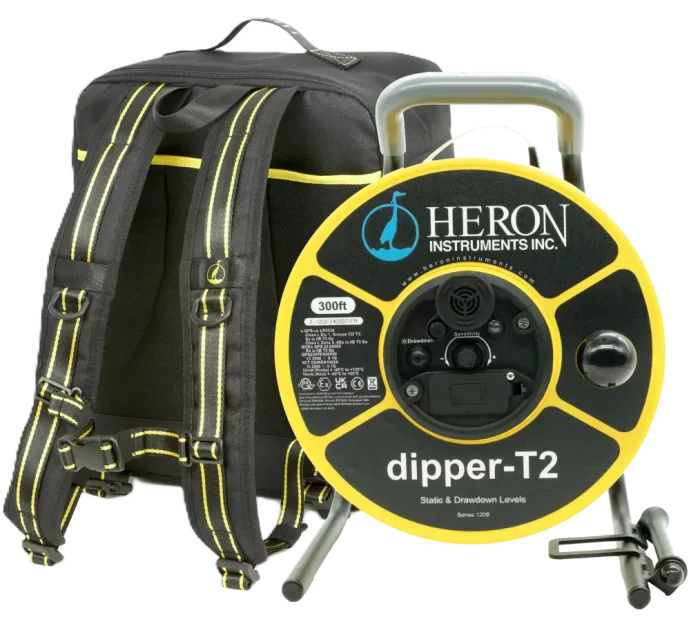

Heron Dipper T2

全新第二代Dipper T 水位計

全新第二代Dipper 系列可以入水跟離水的呼叫。 入水可偵測水面的高度,離水可以用於監測當水面下降導致探頭離開水面時的提示。

Heron Dipper T2 採用黃色的不鏽鋼高張力尺,可長時間用於各種環境下。有供各種長度尺寸可選擇。

*Dipper T2 為兩段不可更換頭水位計, 四段呼叫可更換頭Dipper 水位計請參考Heron Dipper T

可選擇尺寸

  • 15M
  • 30M
  • 45M
  • 60M
  • 100M
  • 150M
  • 200M
  • 300M
  • 450M
  • 600M

Dipper T2 規格

  • Electronic Module (IP65) – mode selectable for static and drawDown levels, removable for easy cleaning and servicing. Circuits and components are potted to protect from moisture and dust intrusion
  • Sensitivity Switch – to adjust for false signals from cascading water
  • Link – to prevent damage to the tape, the probe is sacrificed at the link area if snagged in the well

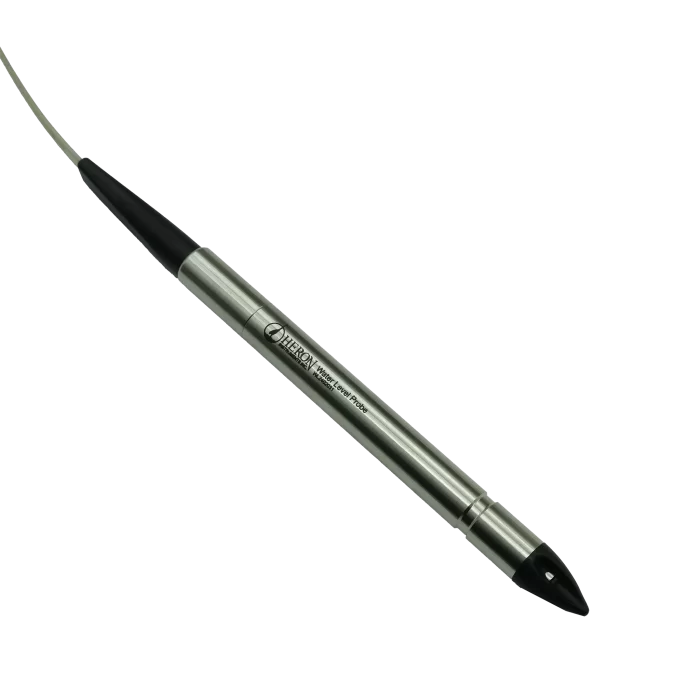

  • Probe (IP68) – 5/8” fully pressure/depth rated*, no holes or recesses for contaminate build up
  • Steel Tape – high tensile steel, jacketed with polyethylene, high break strength, stretch resistant and lifelong legibility – markings in metric (mm) or engineering scale (1/100’)
  • Steel Tape Certified/Compliant to – ASME B89.1.7-2009 & MIL-STD-45662A Certified, FED GGG-T-106F & EEC Class II Compliant
  • Padded Carry Case – to protect your precision water level meter from the elements
  • Hanger – built in, to support the meter at the well head, allows for hands free deployment
  • Tape Guide – built in, to protect the tape from sharp edges on the well casing
  • Vinyl Holding Grip – molded to the frame, ergonomic easy grip
  • Winding Handle – custom made for easy rewinding with gloved hands
