針對井內觀測的攝影機

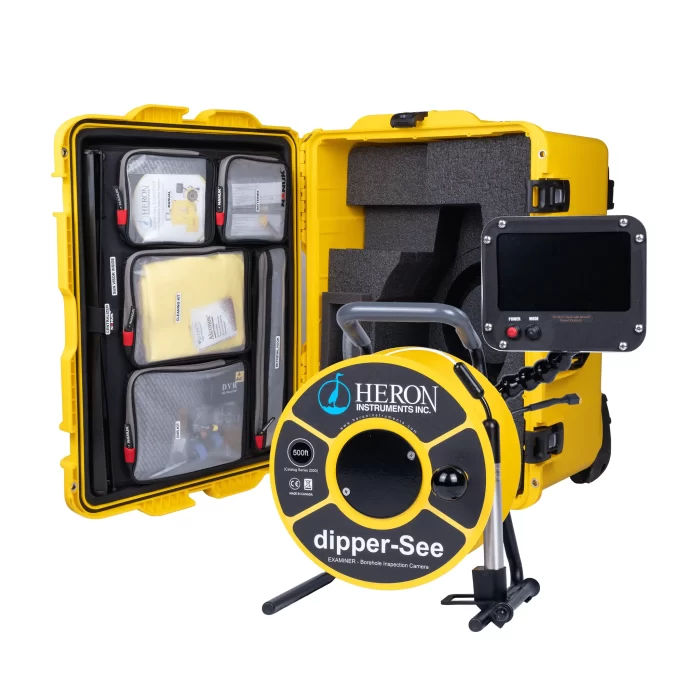

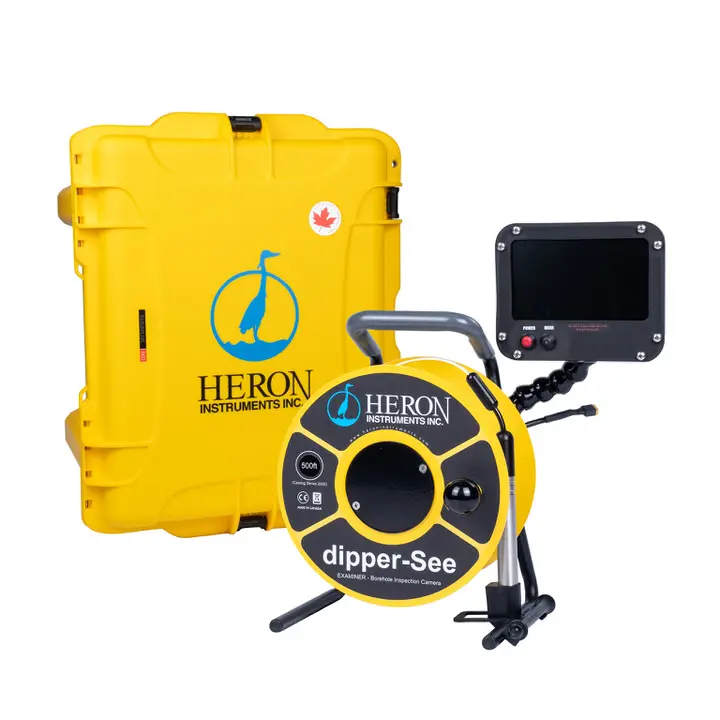

Heron dipper-See EXAMINER 是一套堅固,經濟的垂直井下攝影機。這款獨立的設備在設計時針對了攜帶便利性,非常適合觀察直徑為25 mm(1英寸)的井,排水管,開放性水體鑽管跟窄管的水文監測工作。
螢幕顯示
可以調節固定手臂,方便的將攝影機螢幕連接到框架,提供符合人體工學的解決方案。調節顯示器可以在不同的太陽光或照明亮度下觀看高解析(HD畫質)的顯示螢幕。
錄影錄音
影像跟聲音可以錄製在隨DVR提供的SD卡上,可便於輕鬆將影片檔案傳輸到其他設備。
功能跟配件
功能
- 攝影機探頭 - 25mm (1") diameter, 316 grade fully pressure rated, field replaceable
- 鏡片 – robust, scratch resistant clear sapphire
- LED 燈 – 7 ultra-bright
- 顯示螢幕 – resolution 500TVL, 7” (17.78cm), full colour LCD
- 螢幕跟可調整手臂 - removable
- 尺 – polyethylene, 4 conductors, marked every meter or foot
- 吊掛 – built-in, to support the unit at the well head
- 吊放導尺器 – built-in, to protect the tape from sharp edges on the well casing
配件
- DVR – records video and audio feed
- SD Card – removable for transferring video to computer or USB
- 充電器 - plug type A, AC Input, compact, portable
- 電池 (x2) - removable rechargeable lithium ion, up to 5 hours (3200mAh) per battery
- 麥克風 – 3.5mm jack, for video voice over
- 穩定器 – centers and stabilizes camera probe, removable
- 可取回鉤 – for light weight items
- 螢幕防光照 – for glare free viewing
- 鏡頭擦拭布 – for cleaning the lens and monitor
- 鏡頭清潔劑 (x2) – sample packs for cleaning the See-120 camera probe
- 堅硬保護袋 – to protect your investment from the elements and transport
規格
輪軸外觀
- 高: 36cm (14.2")
- 厚度: 21cm (8.3")
- 寬: 29cm (11.4")
- 重量: (Reel Assembly Only) 2.30kg (5.1lbs)
- 面板材質 Aluminum
- 剎車模式 Ergonomic Dial
- 導尺器: Included on frame leg
- 尺輔助: Included on frame leg
- 支援的尺長度: 150m, 500ft
電纜
- 尺材質: Polyethylene
- 尺外殼 Polyethylene
- 導線X4 7 strand (4 S/S & 3 copper)
- 每公尺標記/英尺
- 尺寬 .952cm (3/8")
- 尺斷裂極限 127kg (280lbs)
螢幕/DVR
- 解析度: 500TVL, 7.0" (diagonal)
- 錄影模式: HD Video
- 顯示: Full Colour LCD
- 工作溫度: -20°C to 60°C (-4°F to 140°F)
- 錄影裝置: External, Included (see manufacturer info for specs.)
- SD Card 32GB
攝影機探頭Camera Probe
- 重量: 315g +/- 5%
- 長度: 120mm (4.75")
- 直徑: 25mm (1")
- 工作溫度: -10°C to 50°C (14°F to 122°F)
- 可拆裝: Yes
- 防水等級: IP68, 水深300公尺(1000ft)內
- 材質: Sapphire, Viton, Stainless Steel 316, Delrin, Acrylic, Polyethylene
- 鏡頭: Clear Sapphire
電池
- 11.1v可充電鋰電池 x2
- 充電器: Plug type A, AC Input
配件物件
- Rugged Carry Case Wheeled, Lightweight NK-7 Polypropylene
- 本體總重: 9.1kg (20lbs)
- 本體/配件/袋子總重: 21.8kg (48lbs)
保固
- 本體 - 1 year
- 袋子 - NANUK Lifetime Warranty
